Custom Metal Bending & Fabrication: Precision-Formed Structural Solutions

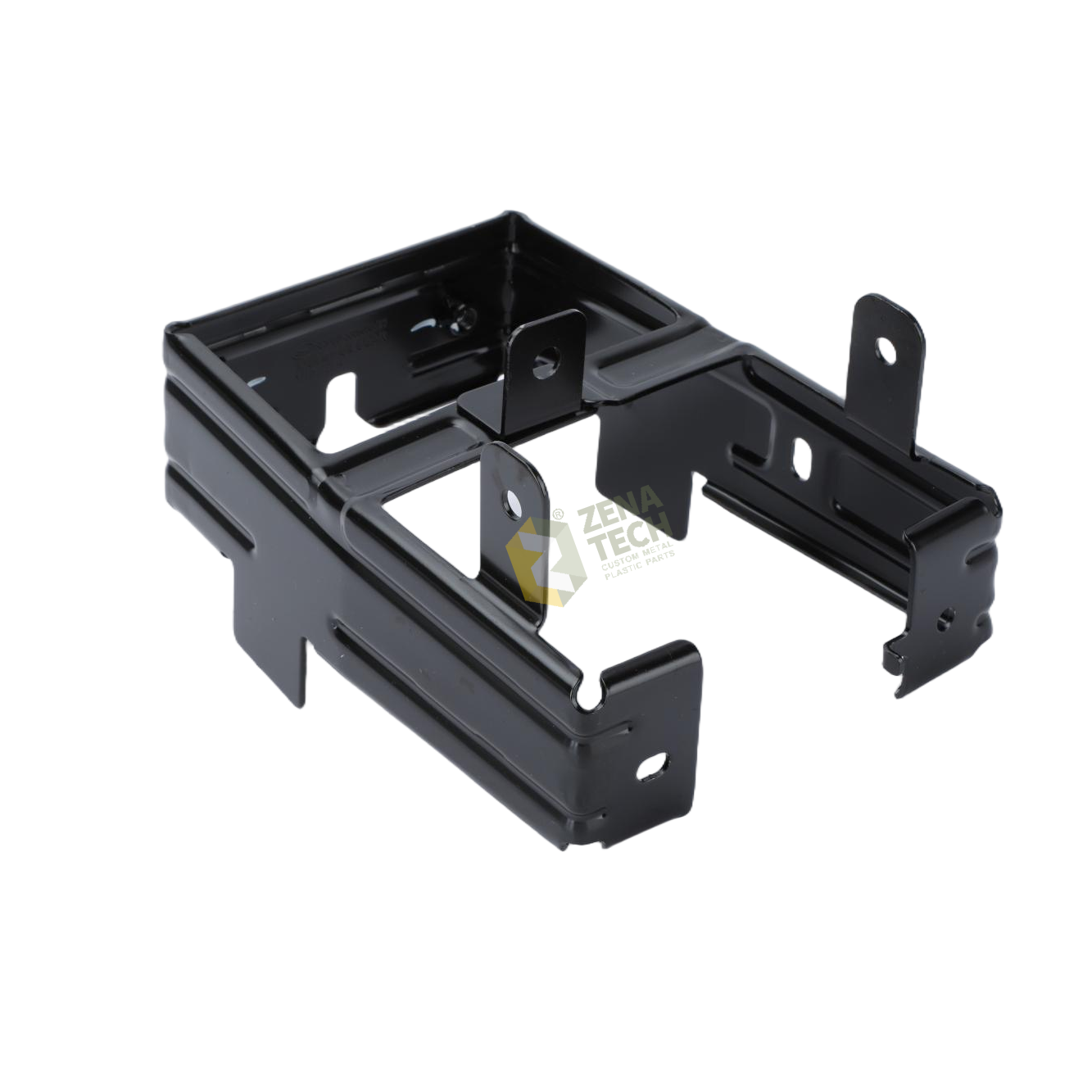

This product image from Zhejiang Zhengna Technology Co., Ltd. showcases our expertise in precision sheet metal bending and fabrication. The component is a robust, black frame constructed from multiple bent and joined metal plates, resulting in a complex and rigid structure. The high-gloss, smooth black finish indicates a quality surface treatment. This part exemplifies our ability to transform flat sheet metal into precise, three-dimensional components that serve as the backbone for enclosures, machinery guards, or support frames. Product Series: CUSTOM METAL & PLASTIC PARTS.
Image: A complex, black-finished metal frame created through precision bending and fabrication, highlighting clean edges, consistent bends, and a professional appearance.
Product Specifications & Fabrication Capabilities
| Capability |
Process & Options |
Design & Functional Benefit |
| Material & Thickness |
-
Materials: Cold Rolled Steel (SPCC), Galvanized Steel (SECC), Aluminum, Stainless Steel.
-
Thickness Range: From light-gauge (0.8mm) to heavy plate (6.0mm+).
|
Select the optimal balance of strength, weight, corrosion resistance, and cost for your application. |
| Bending & Forming |
-
Precision CNC Press Braking: For accurate, repeatable bends with tight tolerances (±0.1mm on bend position).
-
Complex Geometries: Ability to create channels, boxes, panels, and multi-plane frames as shown.
-
Forming: Can include embosses, louvers, hems, and other features.
|
Enables the creation of strong, self-supporting structures from flat sheet, eliminating the need for extensive welding or assembly of many small parts. |
| Joining & Welding |
-
Welding: MIG/TIG welding for strong, clean joints on assembled frames.
-
Fastening: Design for screw assembly, riveting, or clinching.
|
Creates a rigid, unitary structure from multiple bent components, ensuring dimensional stability and load-bearing capacity. |
| Surface Finish (As Pictured) |
-
Black Powder Coating: Durable, corrosion-resistant, and aesthetically pleasing finish. Available in various textures (gloss, matte, texture).
-
Alternative Finishes: E-Coating, painting, plating, anodizing (for Al).
|
Protects against wear and environment, provides a professional OEM appearance, and can include color-matching. |
| Typical Applications |
Equipment Housings & Chassis, Machine Guards & Covers, Electrical Enclosures, Support Brackets & Racks, Display Stands, Automotive & Industrial Framework. |
Versatile solution for creating durable, custom-shaped metal structures across a wide range of industries. |
Why Partner with Us for Custom Metal Bending?
-
Expertise in Complex Frame Fabrication: We specialize in parts like the one shown—not simple brackets, but complex framed structures that require precise multi-bend sequences and often welding, demonstrating a higher level of fabrication skill.
-
From Design to Finished Product: We provide full-service support, from reviewing your 2D/3D designs for manufacturability (DFM), through prototyping, to high-volume production and finishing.
-
Precision for Quality & Fit: Our CNC press brakes and skilled welders ensure that every bend is accurate and every joint is strong, resulting in parts that fit together perfectly in your final assembly.
-
Quality Finishing for a Professional Look: Our in-house or partnered finishing services, like the high-quality powder coating shown, ensure the final product is not only functional but also visually professional and durable.
-
Commitment to On-Time Delivery: We understand the importance of your production schedule and maintain efficient workflows to deliver quality fabricated parts when you need them.
Our Sheet Metal Fabrication Process
-
Design Consultation & DFM: We analyze your design to suggest the most efficient way to nest, bend, and join the parts, potentially reducing cost and improving strength.
-
Programming & Setup: CAD/CAM programming for laser/plasma cutting and CNC press brake setup to ensure precision from the first part.
-
Cutting, Bending & Welding: Sequential fabrication of components, followed by skilled welding and grinding for smooth joints.
-
Surface Treatment & Inspection: Parts are finished as specified, then undergo final inspection for dimensions, weld quality, and finish integrity.
Need a custom metal frame or enclosure built to your exact specifications? Send us your drawings or CAD files for a comprehensive review and quotation.
