Heavy-Duty Vehicle Door Hinge: Built for Security and Longevity
This product image from Zhejiang Zhengna Technology Co., Ltd. showcases a robust electro-galvanized door hinge engineered for commercial vehicles like trucks and buses. The hinge pair features a distinctive gold-yellow zinc finish, providing essential corrosion protection. Its design includes two interlocking plates connected by a sturdy pivot pin, with one plate incorporating an integrated safety latch (keeper) to securely hold the door in the open position. Pre-drilled mounting holes on both plates ensure easy and secure installation. This component is built to withstand frequent, heavy use in demanding environments. Product Series: CUSTOM METAL PARTS.

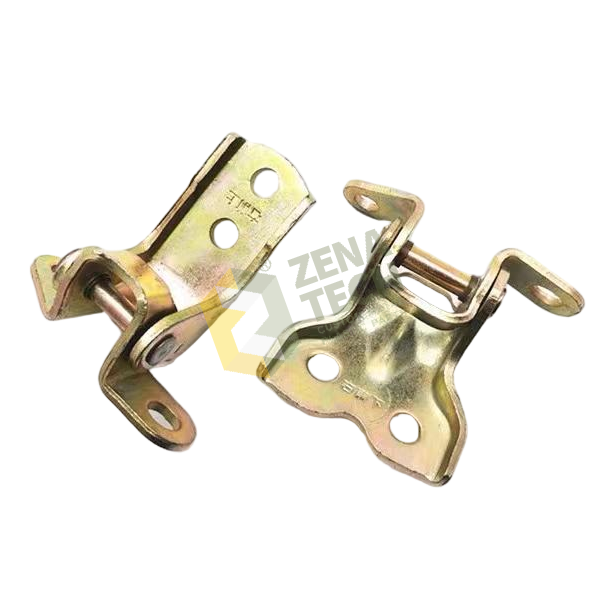

Image: A pair of heavy-gauge, electro-galvanized steel door hinges with an integrated safety latch mechanism, designed for the repeated, high-load operation of commercial vehicle doors.
Product Specifications & Design Features
| Feature |
Details & Specifications |
Functional Benefit |
| Material & Corrosion Protection |
-
Material: High-Strength Steel Plate.
-
Finish:Yellow Zinc Electroplating with Chromate Conversion. Provides a durable, sacrificial layer against rust.
|
Withstands exposure to road salts, moisture, and weathering, ensuring long-term functionality and appearance for exterior vehicle applications. |
| Structural & Safety Design |
-
Integrated Safety Latch (Keeper): A formed tab on the stationary plate that engages with the door plate, preventing the door from swinging closed unintentionally.
-
Robust Pivot Point: Solid steel pin and reinforced knuckles for smooth rotation under heavy loads.
-
Reinforced Plates: Thick-gauge steel formed for maximum rigidity.
|
Critical for operator safety, allowing doors to be securely propped open during loading/unloading. The robust construction prevents sagging and ensures reliable operation. |
| Mounting & Installation |
-
Pre-Drilled Holes: Multiple holes on both mounting flanges (vehicle body side and door side) for secure bolting.
-
Clear Orientation: Design clearly indicates the body-mount plate (longer, with latch) and the door-mount plate.
|
Simplifies installation, reduces assembly time, and ensures a secure fit that can handle the stresses of a large, heavy door. |
| Load Capacity & Application |
Engineered to support the weight and size of large truck and bus access doors, including cargo doors, service panel doors, and passenger doors. |
A vital component for the safe and reliable daily operation of commercial transportation and utility vehicles. |
Why Choose Our Heavy-Duty Door Hinges?
-
Professional-Grade Corrosion Protection: The electro-galvanized finish is specifically chosen for commercial vehicle applications where exposure to elements is constant, offering far superior rust resistance compared to painted or untreated hinges.
-
Safety-Integrated Design: The built-in safety latch/keeper is a critical feature often overlooked. It provides a positive lock in the open position, enhancing workplace safety for drivers and logistics personnel.
-
Engineered for High Loads & Cycles: We use thicker gauge steel and robust pivot designs to prevent door sag, wear, and failure under the weight of large doors and thousands of open/close cycles.
-
Precision Manufacturing for Reliable Fit: Our stamping and forming processes ensure that hole patterns align perfectly and the hinge functions smoothly, preventing installation issues and premature wear.
-
Proven in Demanding Applications: Our hinges are designed to meet the rigorous demands of the transportation industry, providing reliability that fleet managers and body builders can depend on.
Our Manufacturing Process
-
Material Selection: Sourcing of high-strength steel plate certified for durability.
-
Precision Stamping & Forming: Using dies to blank, punch, and form the complex shape with the integrated latch feature.
-
Electro-Galvanizing: Parts are cleaned and processed through an automated plating line to apply a uniform, protective zinc coating with chromate passivation for the signature yellow-gold color and enhanced corrosion resistance.
-
Quality Inspection: Dimensional checks, function testing of the pivot and latch, and coating thickness verification.
-
Packaging: Supplied in pairs, often with mounting hardware kits available, ready for distribution to OEMs or the aftermarket.
Building or maintaining commercial vehicle bodies? Ensure door reliability and safety with our heavy-duty hinges. Contact us for specifications and pricing.
